One_shot_multivibrator_using_a_UJT

Published:2009/7/17 4:13:00 Author:Jessie | From:SeekIC

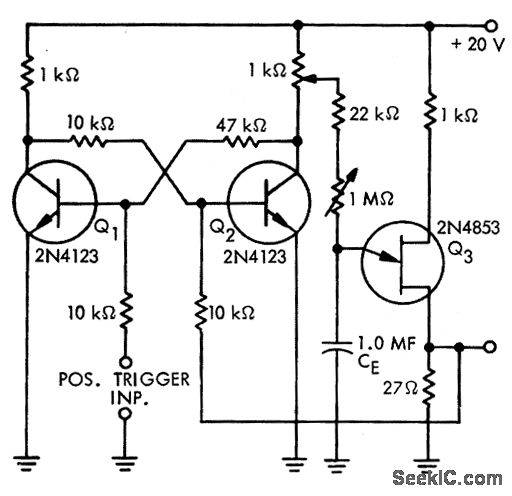

One-shot multivibrator using a UJT. This circuit is insensitive to bias voltage changes (courtesy Motorola Semiconductor Products Inc.).
