Op_amp_without_a_negative_supply

Published:2009/7/24 21:23:00 Author:Jessie | From:SeekIC

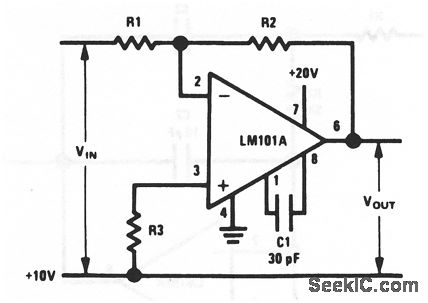

This circuit is similar to that of Fig. 10-2, except that a negative supply is not required. However, a second positive supply (+10 V) is required. The circuit of Fig. 10-14 can be used as the positive supply.
