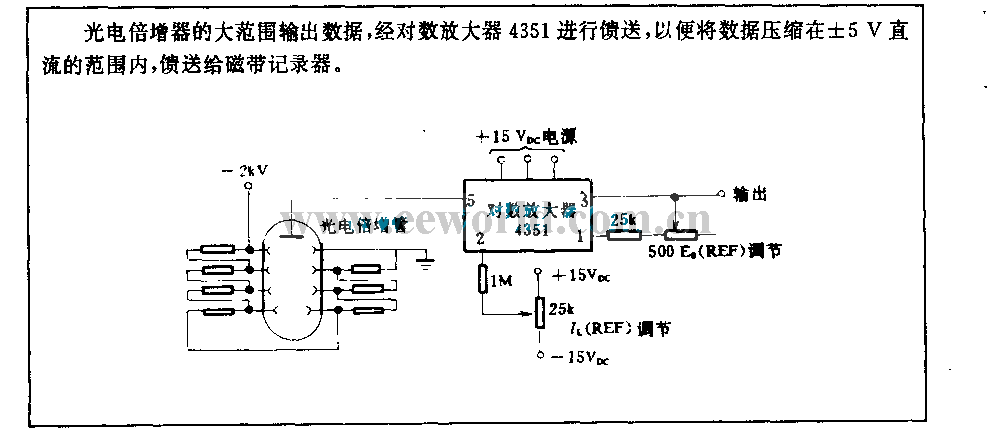

Output record circuit of photoelectric multiplier

Published:2011/5/11 8:26:00 Author:Nicole | Keyword: output record, photoelectric multiplier | From:SeekIC

The large range output data of opto-electrical multiplier is fed by logarithmic amplifier 4351, the data is compressed into the range of ±5V DC, then it is fed to tape recorder.
