PHOTOMULTIPLIER_SUPPLY

Published:2009/6/25 0:03:00 Author:Jessie | From:SeekIC

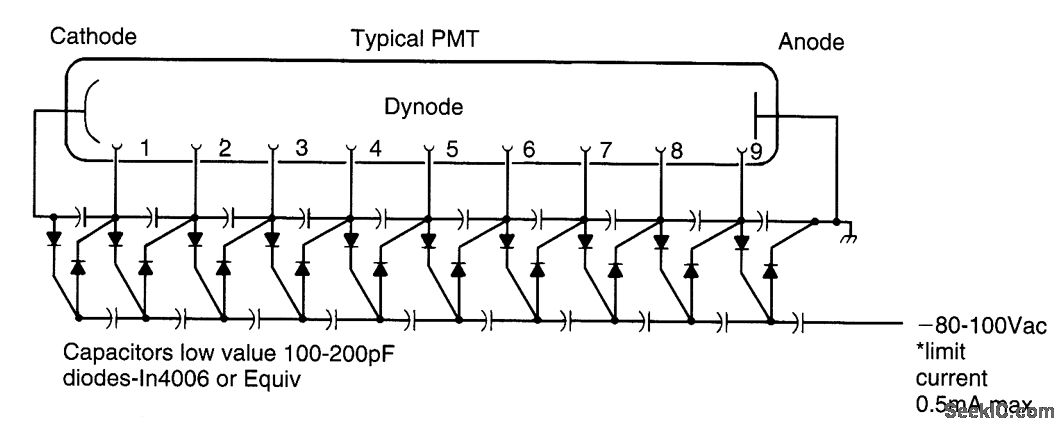

A Cockcroft-Walton voltage multiplier supplies the stepped voltage required for the dynodes of the PMT without the power-wasting voltage-divider resistor string that is traditionally used.
