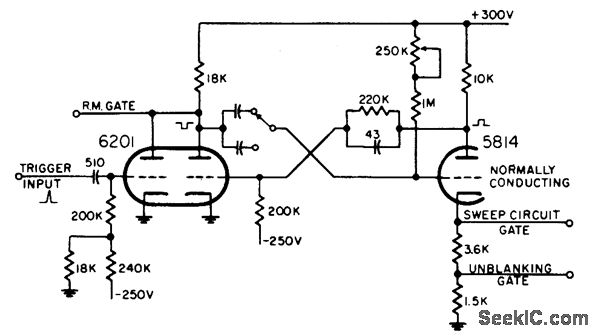

PLATE_TO_GRID_COUPLED_MAIN_GATE_MVBR_

Published:2009/7/16 5:53:00 Author:Jessie | From:SeekIC

Used in combination search and gun-laying radar. Triggered by connecting plate of trigger inverter or switch tube in parallel with plate of normally-off mvbr tube. Provides positive unblanking gate for crt. Different gate lengths are obtained by switching mvbr capacitors.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N10-2.
