PRECISION_NEGATIVE_CURRENT_SOURCE

Published:2009/6/15 21:31:00 Author:May | From:SeekIC

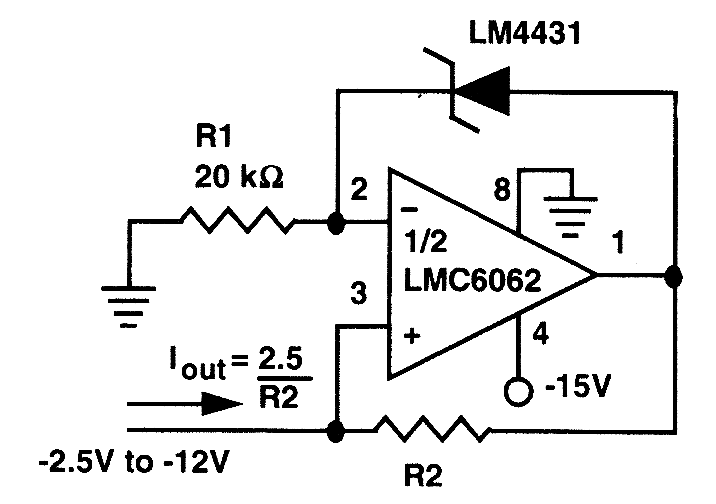

A National Semiconductor LM4431 reference and an LMC6062 op amp make up a negative cur-rent source. Current range is 1μA to 1mA.
