PULSED_X_BAND_MAGNETRON

Published:2009/7/19 20:54:00 Author:Jessie | From:SeekIC

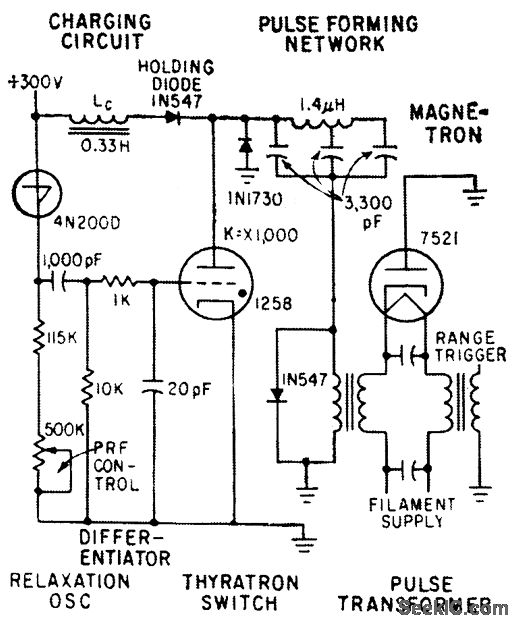

Differentiator forms sharp 2-microsec pulse at trailing each of each sawtooth waveform generated by R-C charging circuit and Shockley pnpn diode. Pulse triggers thyratronto discharge pulse-forming network, and new pulse is stepped up to 4,500 v by pulse transformer for magnetron.-J. Scott, D. Randise, and R. P. Lukacovic, Portable Radar Traces Battlefield Deployment, Electronics, 33:12, p 67-70.
