PULSE_ENERGY_ERGMETER

Published:2009/7/17 3:06:00 Author:Jessie | From:SeekIC

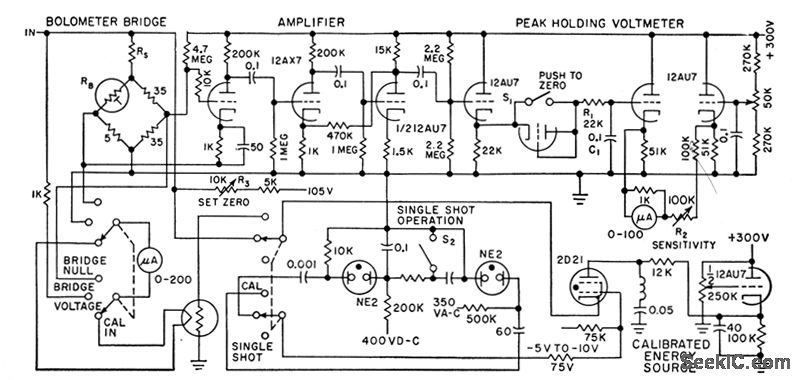

Bolometer bridge converts input signal to heat by integrating input power with respect to time. Heat upsets bridge balance, and resulting signal is amplified and applied to peak-holding voltmeter that indicates energy directly. Used to measure energy content of pulses.-L. A. Rosenthal, Ergmeter Measures Bursts of Energy, Electronics, 31:23, p 79-81.
