PULSE_FORMER_AND_SHAPER

Published:2009/7/17 1:44:00 Author:Jessie | From:SeekIC

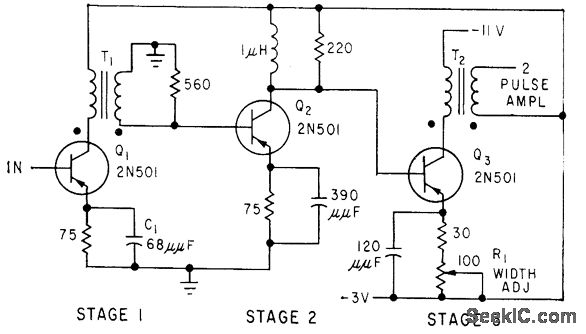

Converts sine-wave input to 40 millimicrosec output. Used in versatile pulse generator for testing high-speed computer circuits. Input frequency range is 3 to 20 Mg.-L. Numann Transistorized Generator for Pulse Circuit Design, Electronics, 32:14, p 47-49.
