PULSE_PHASE_SPLITTER_1

Published:2009/7/16 23:26:00 Author:Jessie | From:SeekIC

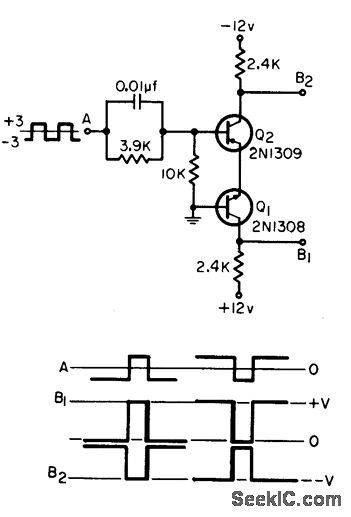

Provides bipolar pulses 180°out of phase, with perfect coincidence of negative-going trailing edges, same reference level, and drive capability for saturated inverters. Used for switching sample-hold gates requiring opposite-going pulses with trailing-edge coincidence.-G. Wolff, Simple Pulse Phase-Splitter, EEE, 14:2, p 70-72.
