Photoelectric lighting circuit

Published:2011/5/11 8:17:00 Author:Nicole | Keyword: photoelectric lighting circuit | From:SeekIC

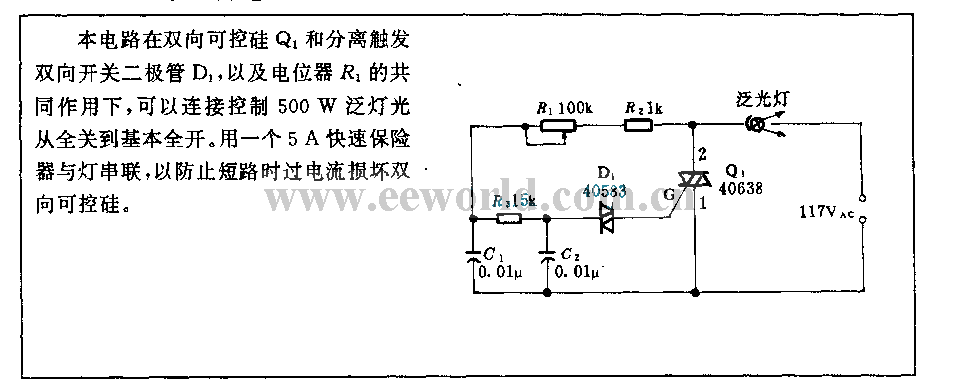

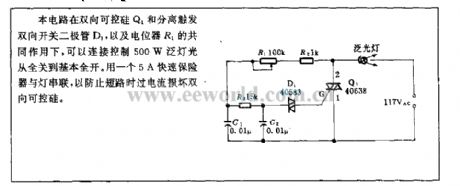

Under the action of TRIAC Q1 and separation trigger bidirectional switching diode D1 and potentiometer R1, this circuit can connect and control 500W light from all off to all on. 5A fast safety device is series connected with light, it can prevent TRIAC from damaging due to the short circuit.
