Positive_buck_converter_with_wide_input_range

Published:2009/7/25 2:25:00 Author:Jessie | From:SeekIC

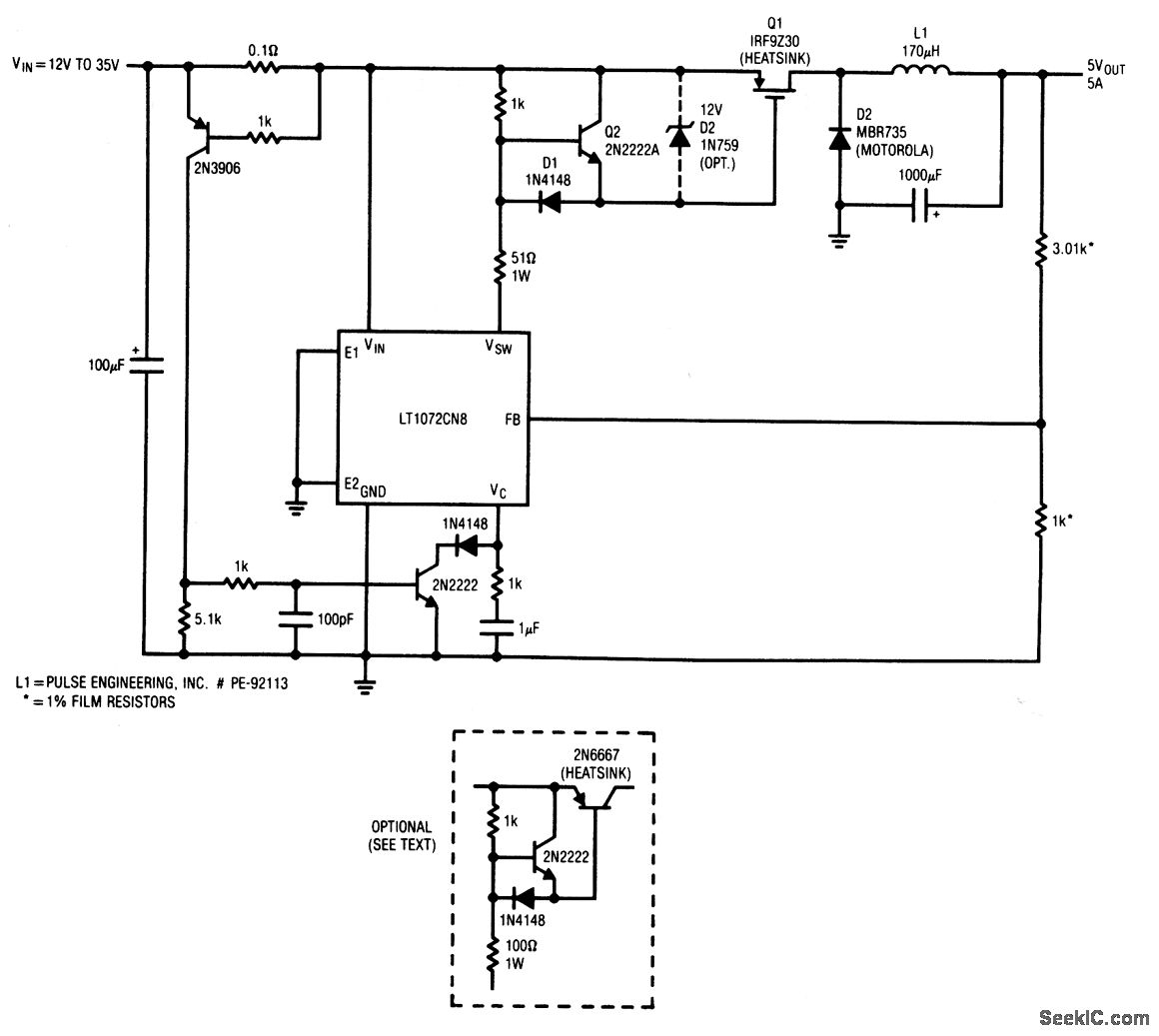

This circuit provides 5-V output at 5 A, for inputs from 12 to 35 V. If the PMOS transistor is replaced with a Darlington pnp transistor (shown in dashed lines), efficiency decreases.
