Composed of BIC1222 DC converter circuit diagram

Published:2011-4-25 5:01:00 Author:Rebekka | Keyword: DC converter | From:SeekIC

MOSFET request for quotation
Click here to send inquiry

You can post buying lead, and our suppliers will quote via our online message system or other channels soon.

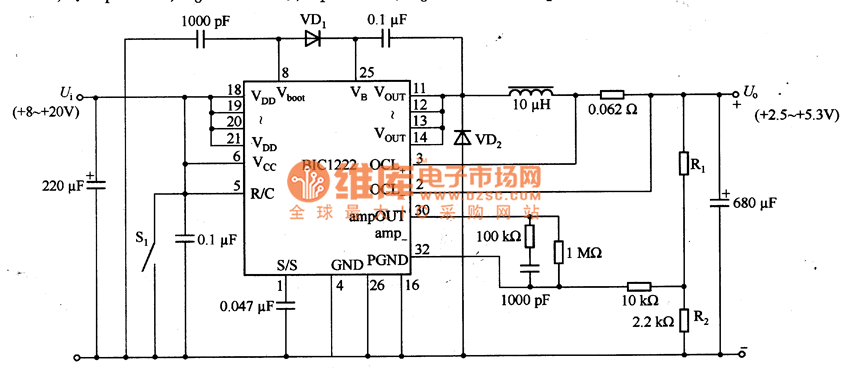

Figure 22 is a DC converter circuit constituted by the BIC1222. BIC1222 has two synchronous rectifier power MOSFET, the control circuit, over-current protection circuit and thermal protection circuit module. It has on and off function. The circuit's input voltage is +8 ~ +20 V, output voltage is + 2.5 ~ +5.3 V, output current is 5A. The output voltage is setted by external resistors R1 and R2 in the range of +2.5 ~ +12 V. Output voltage U. = [2.45V (R1 +2 R)] / R2. In the circuit, R2 = 2.2KΩ, U. = 2.5V, R1 = 47Ω; U. 3.3V, R1 = 770Ω; U. 5.0V, R1 = 2.3KΩ.
