Precision_diode

Published:2009/7/24 22:51:00 Author:Jessie | From:SeekIC

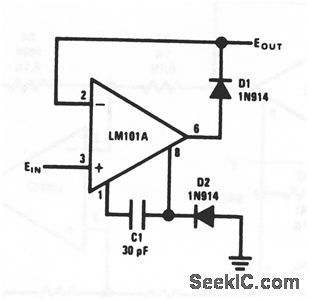

This circuit virtually eliminates diode threshold potential so that millivolt signals can be rectified、Less than 100μV change at the input causes the output of the LM101A to swing from negative to positive.
