Principle and maintenance circuit of the home charger

Published:2011/7/17 20:25:00 Author:TaoXi | Keyword: Principle, maintenance, home charger | From:SeekIC

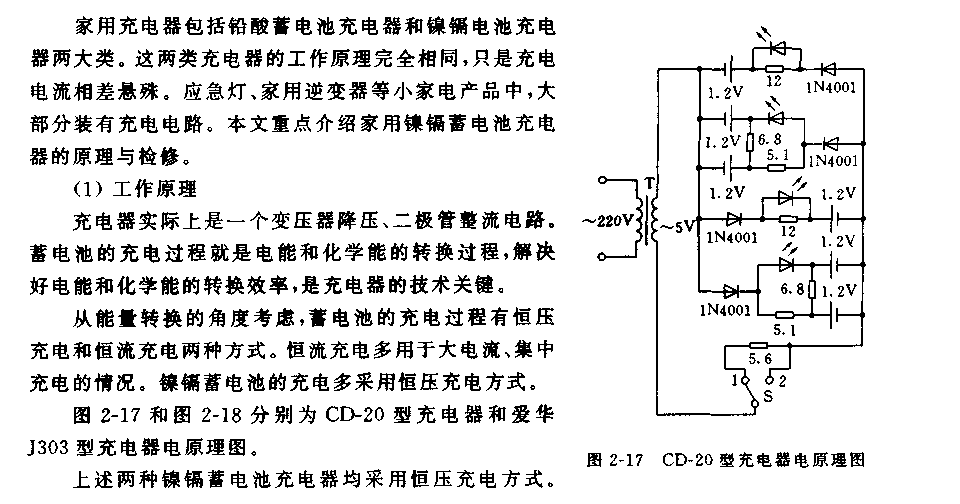

Operating principle: The charger is a transformer step-down and diode rectification circuit. The charging process of the storage battery is the conversion process between the electric energy and chemical energy, The key technology of the charger is to slove the conversion efficiency of the electric energy and chemical energy. From the perspective of energy conversion, the charging process of the storage battery has two kinds of modes: the constant voltage charging and constant current charging. The constant current charging can be used in the situation of large current and concentrated charging. Most of the Nickel-cadmium storage batteries use the constant voltage charging mode.
