RADIOLOGICAL_VACUUM_GAGE

Published:2009/7/19 21:52:00 Author:Jessie | From:SeekIC

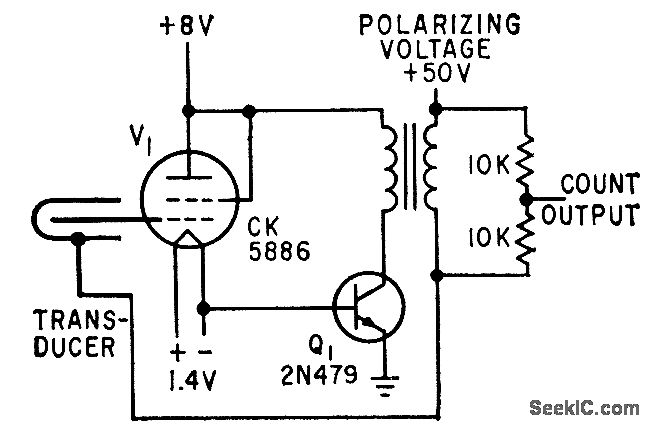

Permils measuring extremely low pressures in laboratory equipment and in high-althude research. Provides digital output that can be used for storage for telemetry. Transformer is audio type with Iarge step-up ratio. Polarizing voltage supplies less than 1 microamp. Transducer is small cylindrical tube lined with radioactive foil.-G. F. Vanderschmidt, Using lsotopes to Measure tow Pressures, Electron-ics, 32:25, p 60-61.
