REFERENCE_OUTPUT_IN_05_V_STEPS

Published:2009/7/20 4:29:00 Author:Jessie | From:SeekIC

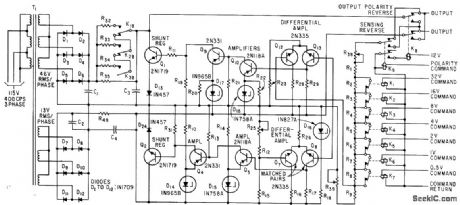

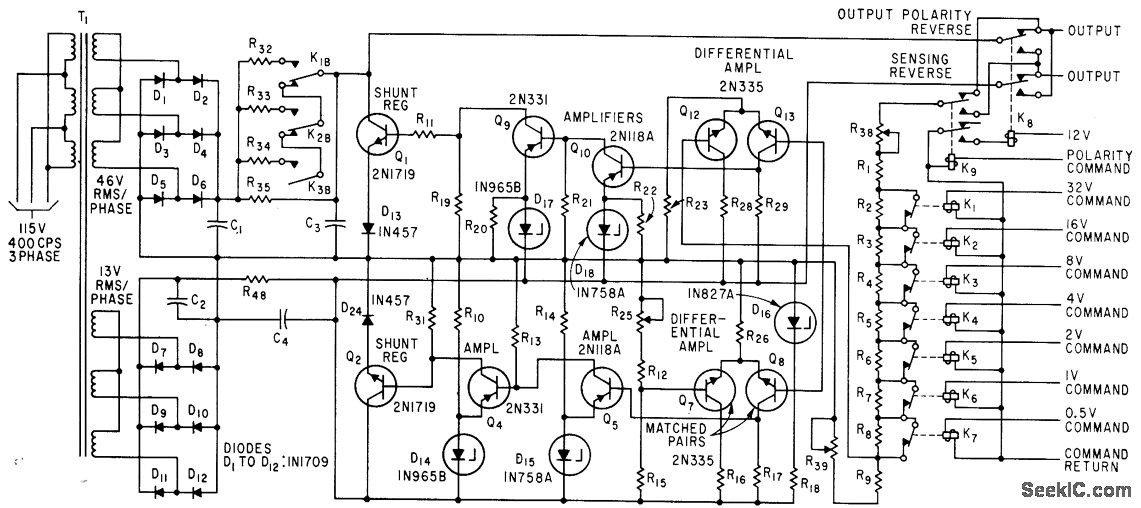

Eight command signals combined in a binary manner provide stable reference output voltage r from -63.5 v to +63.5 v in 0.5-v steps, with regulation of 0.05% for 5% change in input voltage. System uses two independent d-c power supplies, one delivering fixed 20 v and the other from 20 to 83.5 v in 0.5-v in crements.-M. Beebe and J. Miller, Reference. Supply Delivers Half-Volt Increments, Electronics,35:18, p41-43.
