REGULATOR_DIODE_STRING

Published:2009/7/20 2:21:00 Author:Jessie | From:SeekIC

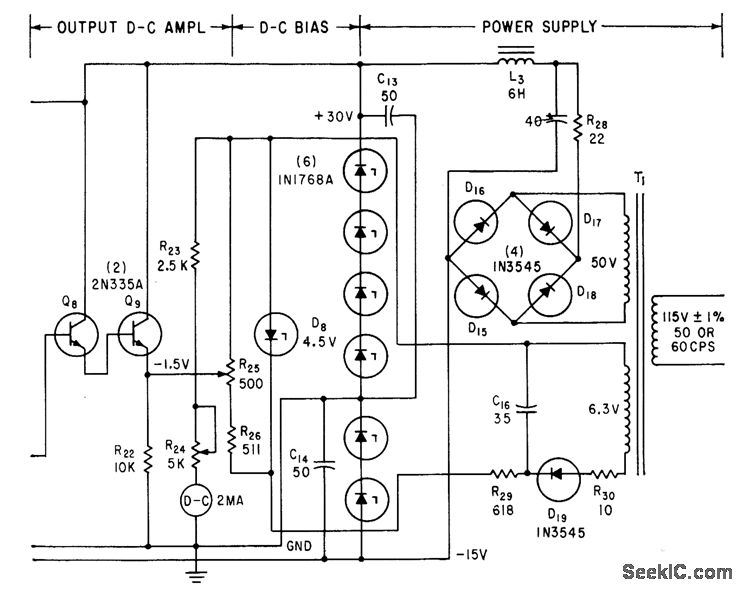

Six 5% silicon regulator diodes operated at 65 ma give +30 v at 90 ma and -15 v of 95 ma. Used with vibration-measuring circuit whose peak reading output drives d-c amplifier Q8-Q9 to give required output current of 2 ma for d-c meter or recorder.-H. A Harriman and W. M. Trenholm, Vibration Measurements with Peak. Reading Circuit, Electronics, 35:20, p 57-59.
