REMOTE___SENSING_6_V_REGULATOR

Published:2009/7/20 7:07:00 Author:Jessie | From:SeekIC

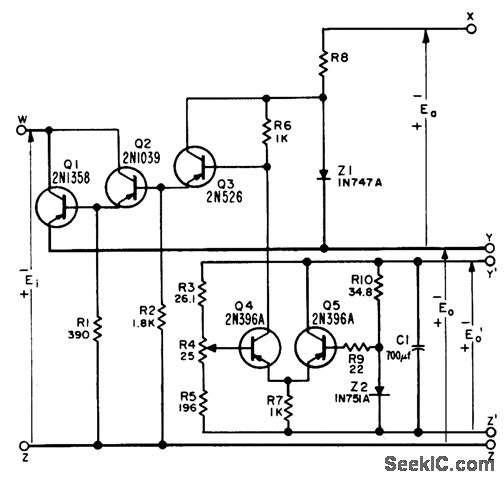

Used when small lead resistance between regulator and load is physically impossible. Voltage Eo' is essentially voltage that appears directly across load. Differential amplifier senses and corrects for changes in this volt-age rather thon for changes in Eo at regulator output terminals.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 11, Semiconductor Device Circuits, PSC 1, p 1-11.
