Regulator_with_logic_output_on_dropout_battery_low

Published:2009/7/24 2:21:00 Author:Jessie | From:SeekIC

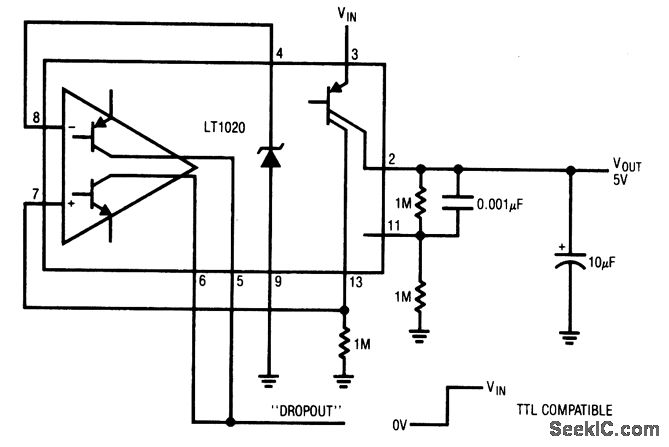

This circuit produces a logic-1 output when the regulator begins to drop out (battery low). The logic-1 signal can be used to alert a processor (or similar circuit) that power is about to go down.
