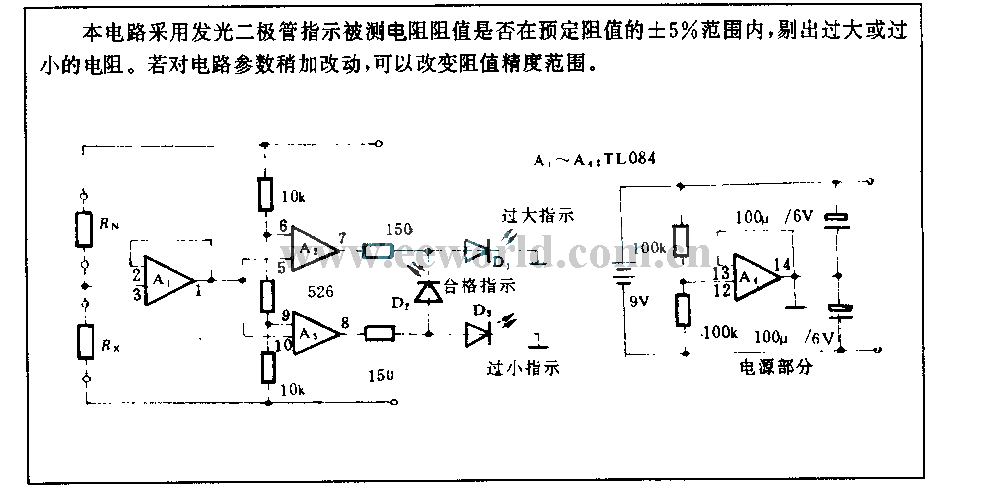

Resistance value choice circuit

Published:2011/4/11 4:15:00 Author:Nicole | Keyword: resistance value, choice | From:SeekIC

This circuit adopts LED indicates whether the measured resistance value is in the 5% range of reservation precision, removing the too large or too small resistance. If make a few changes to circuit parameter, thenit will change the precision precision range.
