SCOPE_PROBE_CIRCUITS

Published:2009/7/17 1:40:00 Author:Jessie | From:SeekIC

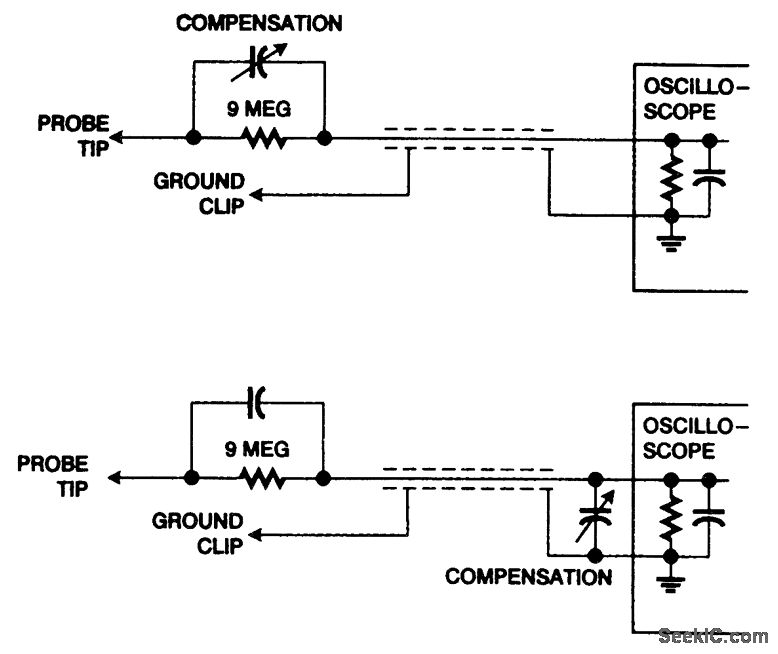

Assuming a 1-MΩ Scope input impedance and input capacitance Cin, Ccompensation＝(Rprobe/1 MΩ) Cprobe or Cprobe /Cinput = Rinput/Rprobe.
