SCR_BATTERY_CHARGING_REGULATOR

Published:2009/7/16 4:25:00 Author:Jessie | From:SeekIC

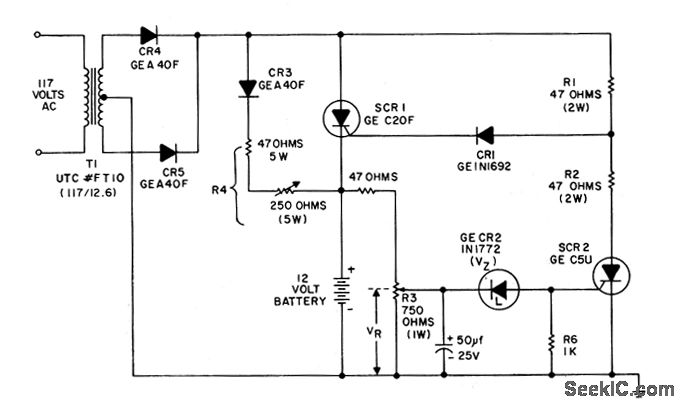

Can charge 12-v battery at up to 6-amp rate.When battery voltage reaches charged level, charging scr shuts off, and trickle charge determined by R4 flows.- Silicon Controlled Rectifier Manual, Third Edition, General Electric Co., 1964, p 109.
