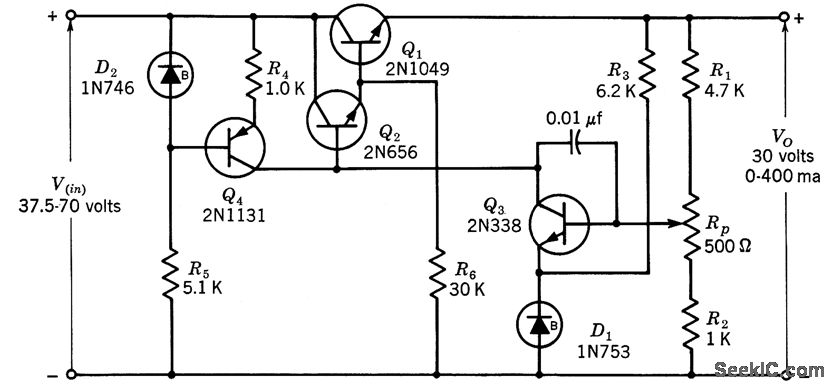

SERIES_RUGULATOR_WITH_TRANSISTOR_PREREGULATOR

Published:2009/7/20 2:31:00 Author:Jessie | From:SeekIC

Design procedure is give to meet specification that regulation factor F range from 0.001 for no load to 0.00145 for full load when input voltage varies over range specified. Output varies from 30.7 v to 31.l over temperature range of -50 to +125℃.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 160.
