SHORT_CIRCUIT_SHUTDOWN_CIRCUIT

Published:2009/7/17 2:27:00 Author:Jessie | From:SeekIC

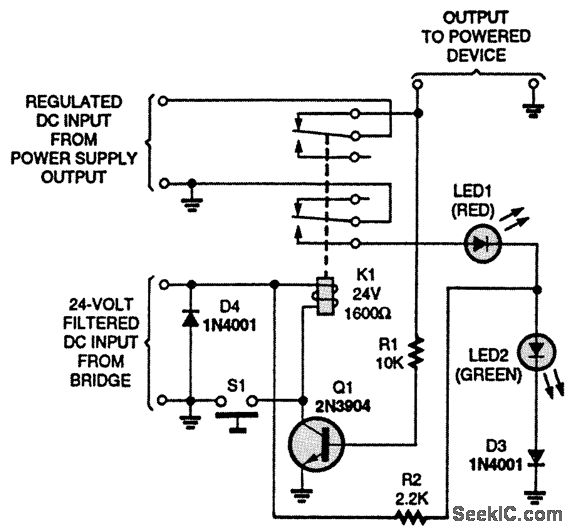

When a short or severe undervoltage develops, Q1 is cut off, deenergizing Q1, and disconnecting the load from the power supply.
