SIMPLE_FET_MIXER

Published:2009/7/16 6:18:00 Author:Jessie | From:SeekIC

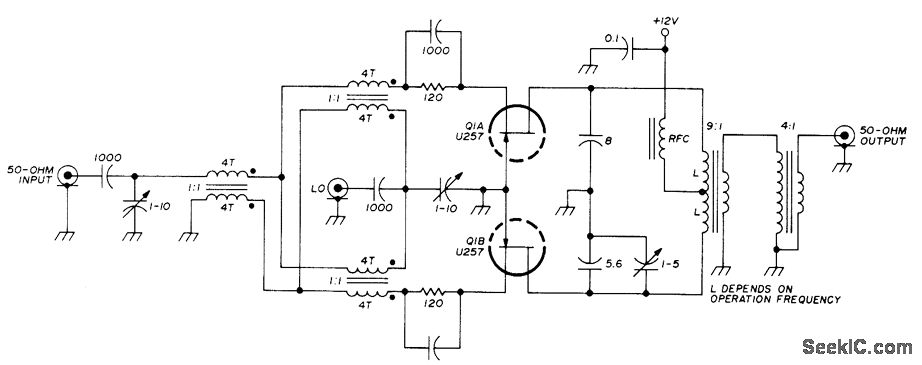

Uses U257 dual FET in double-balanced circuit having 50-ohm input impedance, for high-quality communication receiver. Gives excellent third-order intermodulation distortion suppression (68 dB down).-U.L Rohde, Optimum Design for High-Frequency Communications Receivers, Ham Radio, Oct. 1976,p 10-25.
