SIMPLE_NEGATIVE_SUPPLY_FOR_LOW_CURRENT_APPLICATIONS

Published:2009/6/26 3:41:00 Author:Jessie | From:SeekIC

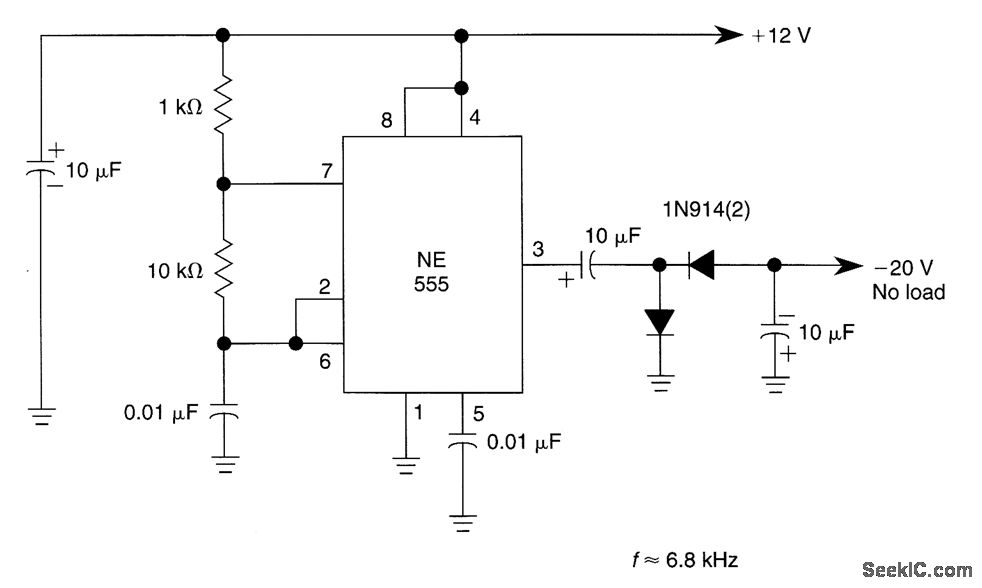

This dc negative-voltage generator based on the 555 produces a negative output voltage equal to approximately 2x the dc supply voltage.
