SINGLE_TRANSISTOR_PHASE_SHIFTER

Published:2009/6/28 20:40:00 Author:May | From:SeekIC

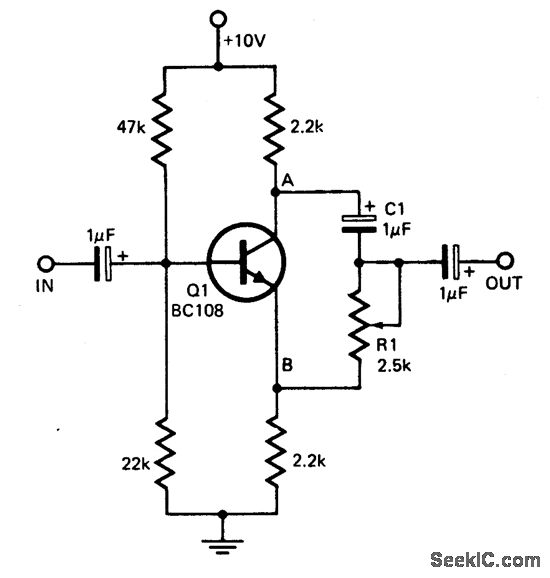

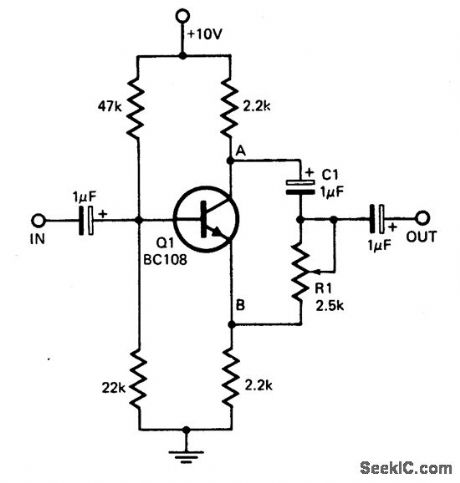

This circuit provides a simple means of obtaining phase shifts between zero and 170°.The transistor operates as a phase splitter, the output at point A being 180° out of phase with the input. Point B is in phase with the input phase. Adjusting R1 provides the sum of various proportions of these and hence a continuously variable phase shift is provided. The circuit operates well in the 600 Hz to 4 kHz range.
