SOLID_STATE_DELAY_WITH_A_C_OUTPUT

Published:2009/7/14 22:19:00 Author:Jessie | From:SeekIC

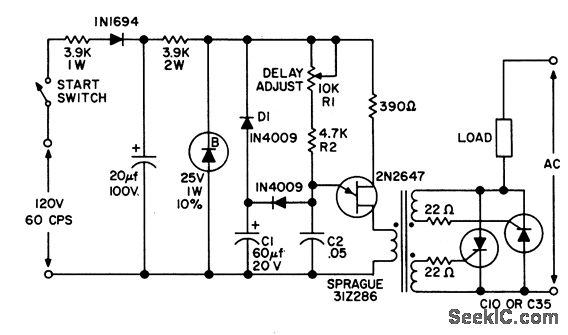

Timing sequence is initiated by switch, which applies power to ujt circuit. When emitter voltage of vie reaches peak point, C1 remains charged and vie oscillates at high frequency. Resulting pulses turn on scr’s through pulse transformer, applying voltage to load.- Transistor Manual, Seventh Edition, General Electric Co.1964, p 322.
