SOLID_STATE_LIGHT_SOURCES

Published:2009/6/17 2:52:00 Author:May | From:SeekIC

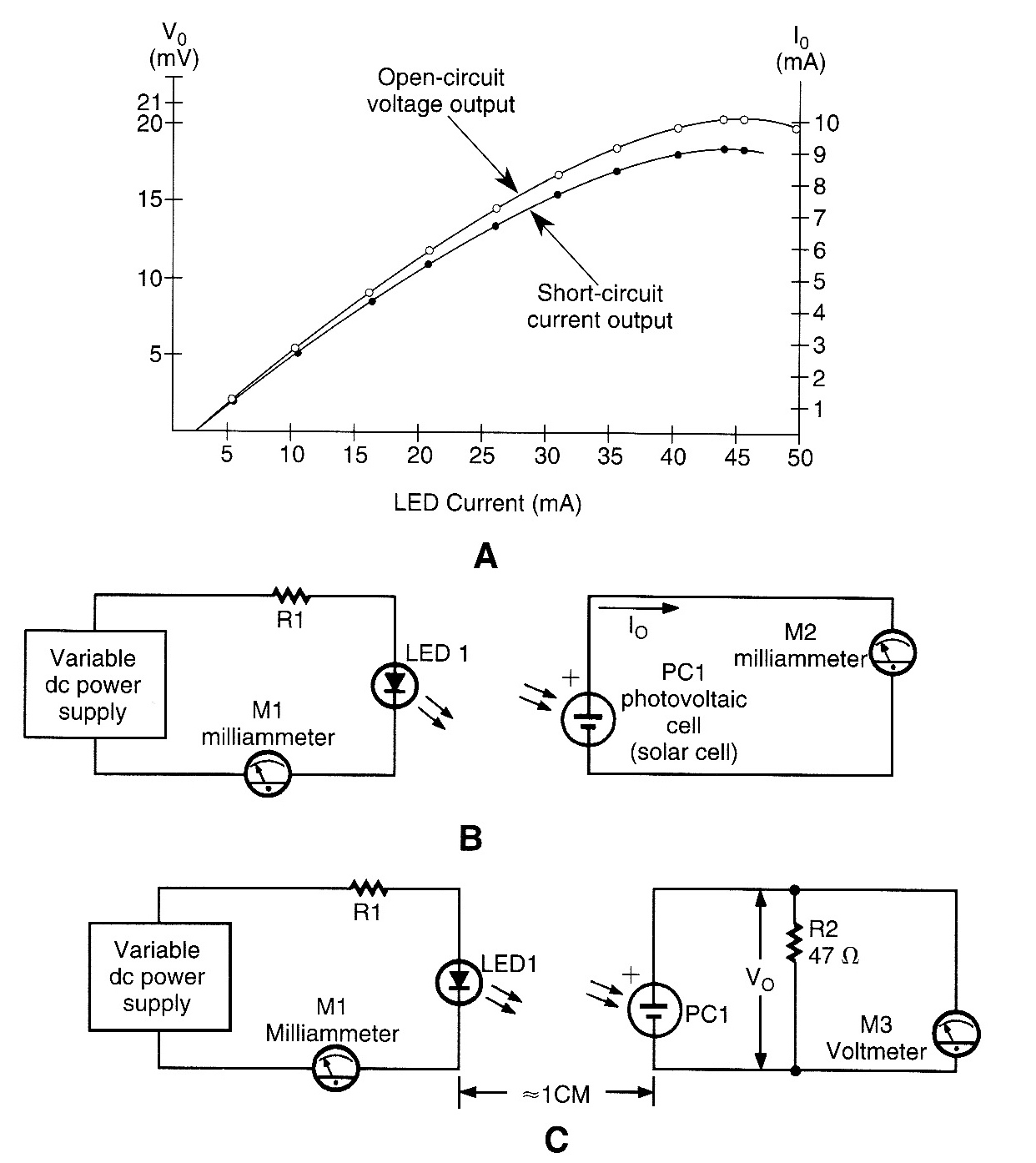

In A we show two LED output curves derived by experiment. The circuit in B was used to get the data for the shod-circuit current plot, while the circuit in C yielded the data for the open-circuit voltage plot.
