SOLID_STATE_LIGHT_SOURCES_11

Published:2009/6/17 3:07:00 Author:May | From:SeekIC

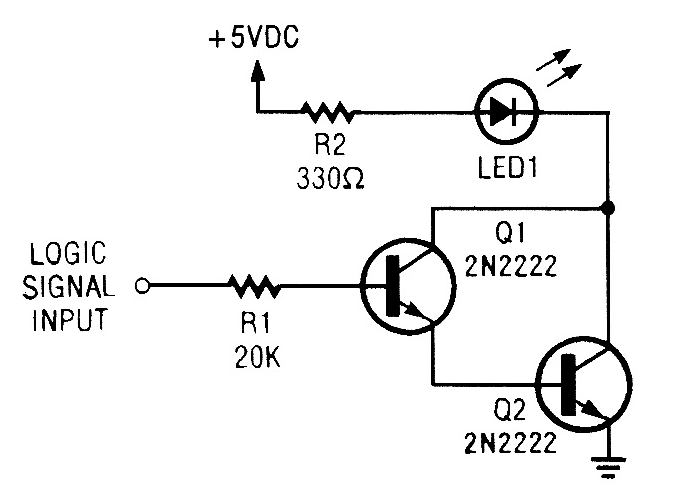

This high sensitivity Darlington LED driver circuit can be used as a simple Iogic probe. You may have to vary the value of R1 to suit the circuit under test.
