STRETCHING_FAST_PULSES_BY_SAMPLING

Published:2009/7/16 20:43:00 Author:Jessie | From:SeekIC

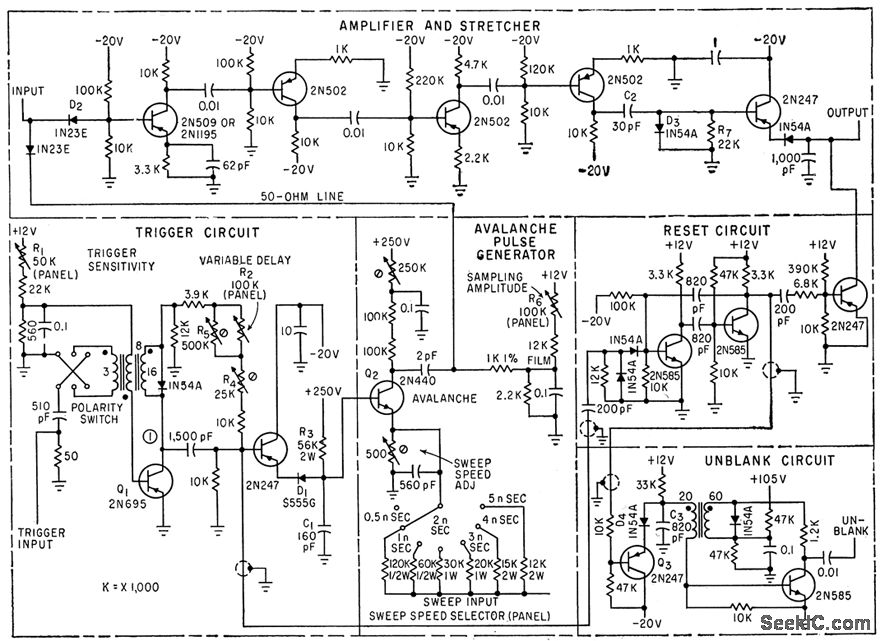

Attachment for conventional scope samples instantaneous amplitude of signals at different instants of time and reconstructs original shape by peak-detecting amplified and stretched samples. Permits resolving pulse rise times as short as 1/3nanosecond with repetition rates up to 50 kc.-J.J. Amodei, Converting Oscilloscopes for Fast Rise Time Sampling,Electronics,33:26,p 96-99.
