SUPPRESSING_NOISES_UP_TO_1000_TIMES_SIGNAL_LEVEL

Published:2009/7/15 23:18:00 Author:Jessie | From:SeekIC

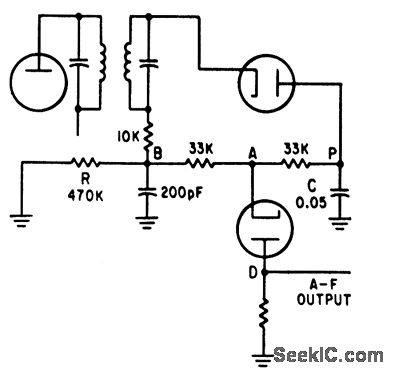

Improved noise limiter for airborne transceiver uses large RC time constant. Plate of detecting diode is negatively charged by a-f signal, held steady by C. For noise impulses, point A swings positively and limiter diode blocks rectified noise signal.-K. Makino and T. Yamanaka, Servo-Tuned Transceiver for Airborne VHF Communications, Electronics, 35:1, p 82-85
