Simple_5_V_fixed_regulator

Published:2009/7/23 23:16:00 Author:Jessie | From:SeekIC

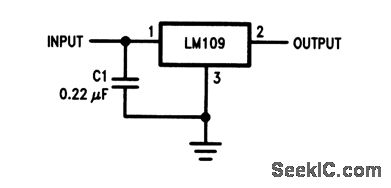

This simple circuit accepts line voltages from 7 to 35V, and produces a regulated 5-V output at 1.5A. C1 is added to prevent oscillation.
