Simple_buck_regulator_with_two_outputs

Published:2009/7/24 8:33:00 Author:Jessie | From:SeekIC

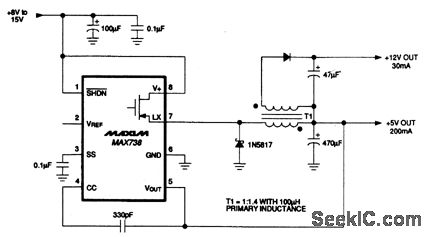

In this circuit, a MAX738 provides a +5-V 200-mA output through the inductor primary, and a + 12-V 30-mA output through the inductor secondary for inputs from 8 to 15 V .
