Simple_unit_counter_with_BCD_output

Published:2009/7/19 21:56:00 Author:Jessie | From:SeekIC

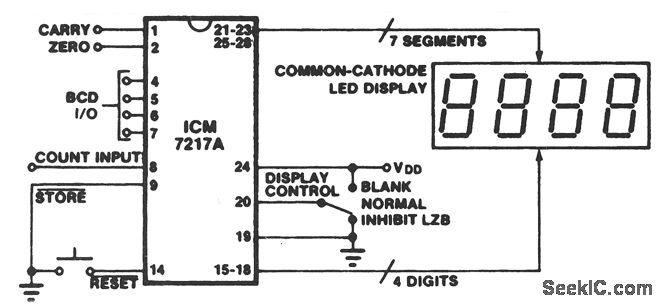

This circuit shows an ICM7217 and a calculator-type 4-digit display that is connected to form a very simple unit counter and display system.
