Single_cell_flyback_regulator

Published:2009/7/24 2:05:00 Author:Jessie | From:SeekIC

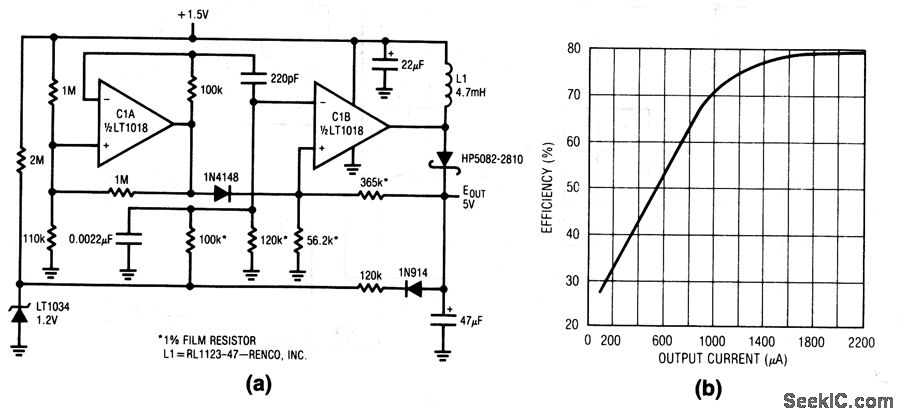

This 1.5-V powered regulator provides a 5-V output, at currents up to 2200 μA. As shown by the graph of Fig. 8-14B, efficiency is greatest at currents above 1500 μA, and drops off at lower currents (because of fixed losses in the regulator).
