Single_cell_inverting_20_dB_amplifier

Published:2009/7/24 3:11:00 Author:Jessie | From:SeekIC

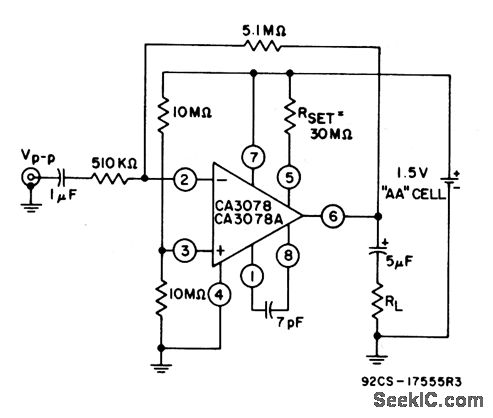

Total power consumption for this circuit is about 675 nA. The output voltage swing is 300 mVPP, with a 20-kΩ load.
