Split Supply - Current Blocking Switch Machine Power Supply

Published:2013/6/6 20:37:00 Author:muriel | Keyword: Split Supply , Current Blocking , Switch Machine , Power Supply | From:SeekIC

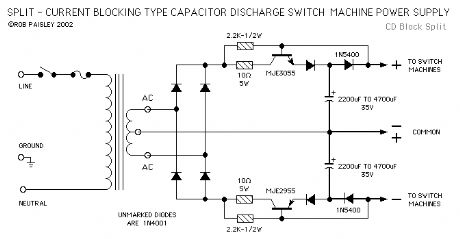

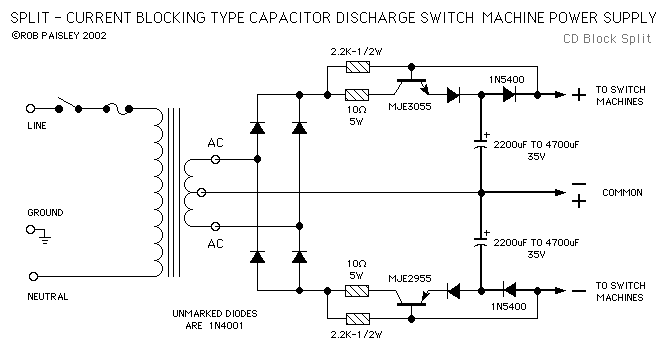

The next circuit is essentially the same as the one above except that a split of dual output is provided. The circuit therefore has a PLUS, MINUS and NEUTRAL output terminal but functions in the same manner as the single sided power supply circuit. A 1N4001 diode has been placed in the emitter circuit of the power transistors to ensure that the proper voltage differential is achieved between the base and emitter junctions of these transistors. This circuit has not been tested on a layout but should work as designed. Please take some time to experiment before actually installing the circuit.
