Step_down_converter_with_zero_outyout_capability

Published:2009/7/25 1:28:00 Author:Jessie | From:SeekIC

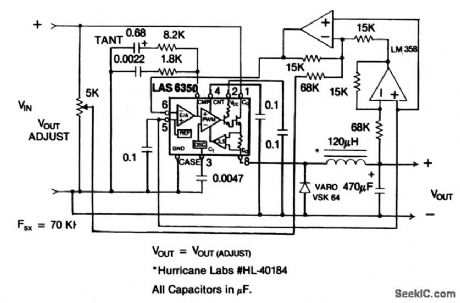

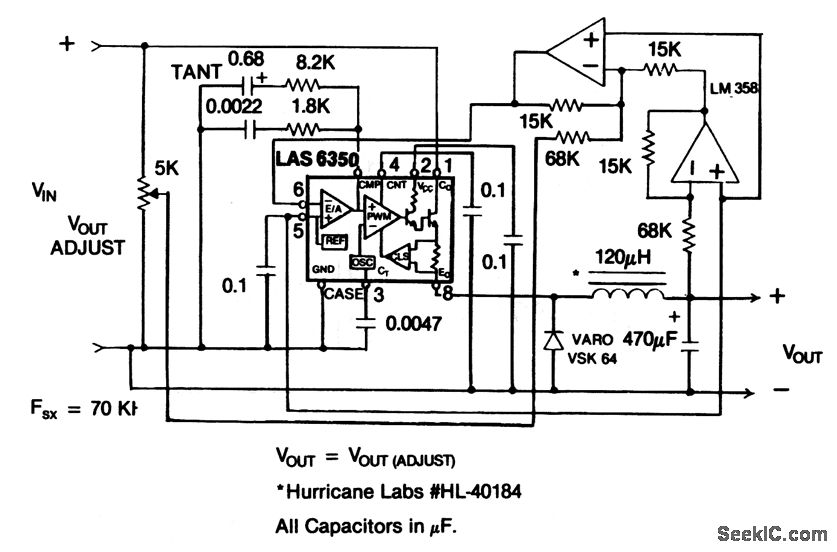

This circuit can be adjusted from 5 down to 0 V.
