TEMPERATURE_STABILIZED_1_TO_17_V

Published:2009/7/20 4:59:00 Author:Jessie | From:SeekIC

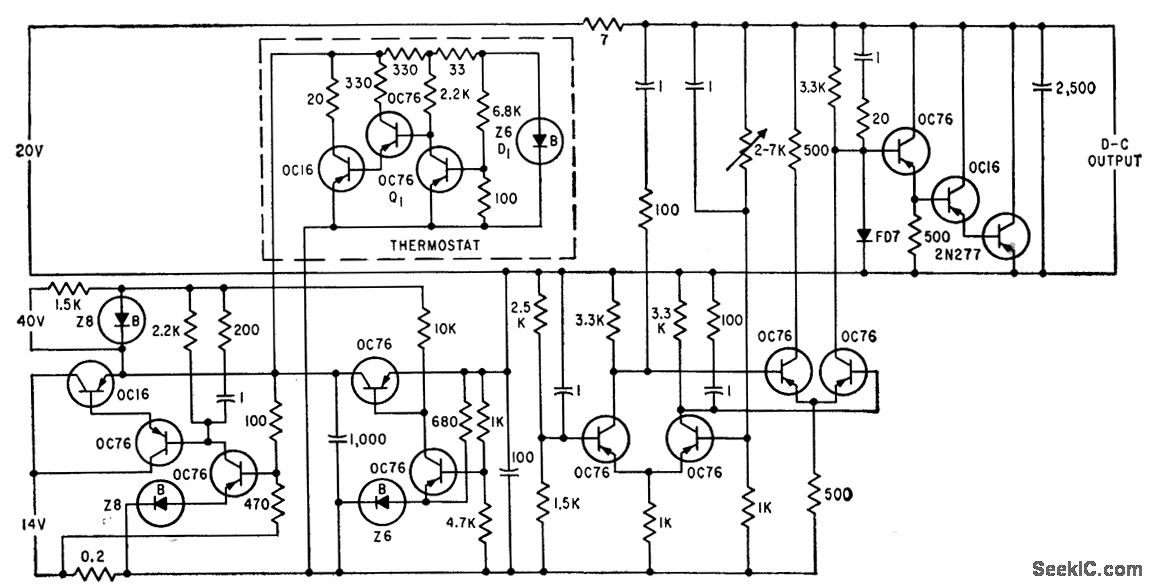

Shunttype supply uses prestabilizer to control temperature controller and stabiilzing circuit that serves as voltage reference. After reaching equilibrium temperature in 5 hours, overall drift over 15-hour period is only 36 microvolts per hour at 6 v output. Ripple voltage is 0.1 my maximum peak-to-peak.-E. Baldinger and W. Czaja, Designing Highly Stable Transistor Power Supplies, Electronics, 32:39, p 70-73.
