THREE_TERMINAL_REGULATOR_CURRENT_SOURCE

Published:2009/6/18 23:56:00 Author:May | From:SeekIC

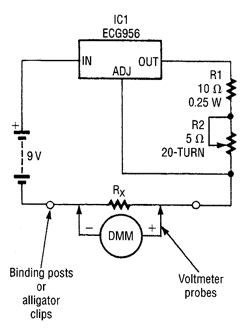

A three-terminal voltage regulator acts as a current source in this circuit. A resistor is being calibrated using a DMM and the current source.
