TIMING_PULSE_SHAPER

Published:2009/7/17 4:24:00 Author:Jessie | From:SeekIC

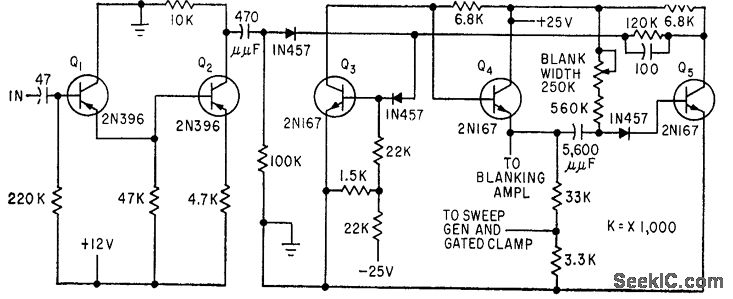

Monostable mvbr converts timing signal to narrow pulse whose width is accurately controlled by R-C net work. Use of emitter-follower Q4 between triggered transistor Q3 and R-C network assures fast rise and fall times.-C. E. Veazie, Transistorized Radar Sweep Circuits Using Low Power, Electronics, 32:26, p 46-47.
