TXD1742--The fully automated AC stabilizer of continuous adjustment

Published:2011/8/23 22:37:00 Author:qqtang | Keyword: AC stabilizer, continuous adjustment | From:SeekIC

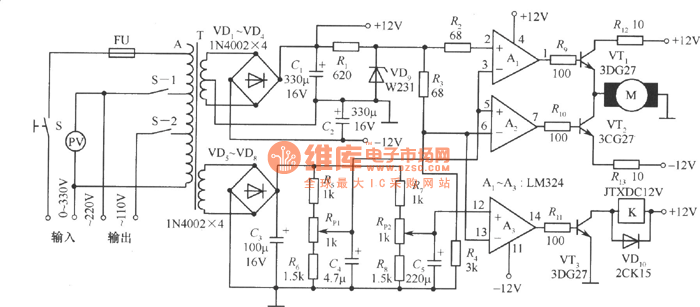

The stabilizer is a servo system controlled auto stabilizer. Its characterizes continuous adjusted stabilization course, ±1.5% stabilizing precision, the 165～250V power supply adapting range, the over-voltage protection and auto reset function. The circuit is shown in the figure, which mainly consists of 3 parts, i.e the self-coupled transformer and servo motor; regulated comparator adjustment and over-voltage protection circuit; DC power supply circuit.
