Tapped_inductor_buck_converter

Published:2009/7/24 8:28:00 Author:Jessie | From:SeekIC

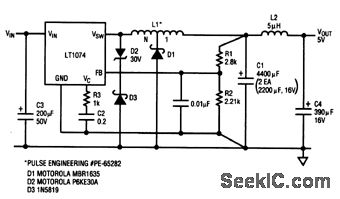

This circuit uses a tapped inductor to increase the current output capability. The ratio of input turns to output turns is N. With an N of 3 (three times as many turns to the left of D 1 as at the right of D 1 ), a VIN of 20 V, an L of 100μH, and a VOUT of 5 V, the IOUT is approximately 10 A (double that of Fig. 4-39).
