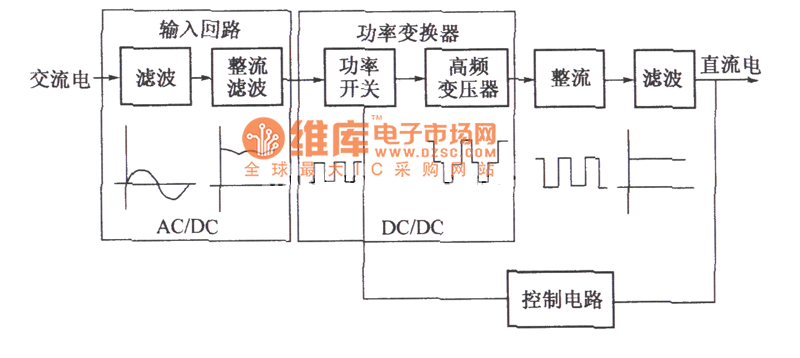

Switch rectifier is mainly composed of four parts: input circuit, power transformer, rectifier, filter circuit and control circuit, as shown. Input circuit will ac input voltage rectifier filter into a relatively flat high-voltage dc voltage, the power converter converts it to the high frequency pulse voltage, then through rectifying filter circuit converts the high frequency pulse voltage steady dc voltage, output to the load. Control circuit of the role is to ensure the stability of the output dc voltage and is adjustable.
