The distributed power supply system circuit diagram

Published:2012/11/9 20:14:00 Author:Ecco | Keyword: distributed power supply , system | From:SeekIC

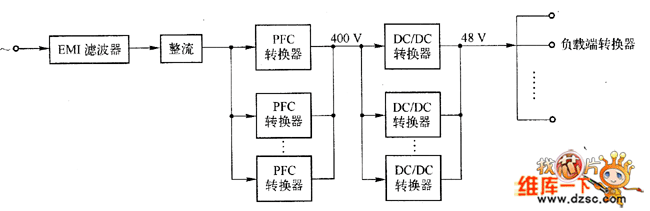

The system consists of a front - end converter and back-end converter: front - end converter (Front End Converter) inlcudes AC / DC converter with power factor correction (PFC) and 400/ 48 V DC / DC converter, both of them are composed of several modules connected in parallel. AC input voltage is rectified by the PFC converter to get 400V DC voltage.
