The pilotless car circuit of double motors

Published:2011/7/20 21:24:00 Author:Borg | Keyword: pilotless car | From:SeekIC

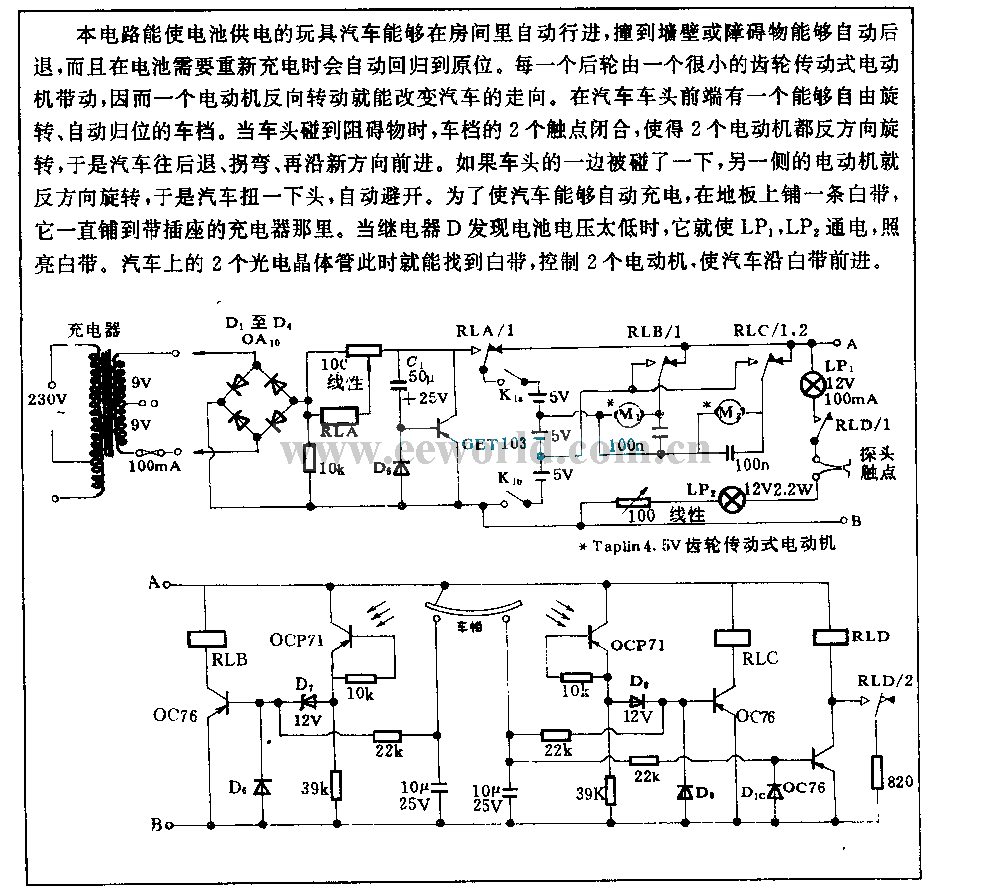

The circuit can make the toy car with battery power supply move automatically, and the toy car can back off automatically when it touches the wall or the obstacle, it will reset automatically when the cell needs to be recharged. Each rear wheel is driven by a wheel gear motor, so just the reversed running of one motor can control the moving direction of the car. At the head of the car, there is a car gear which can freely rotate and reset automatically.
