Time_dependent_light_dimmer

Published:2009/7/21 5:04:00 Author:Jessie | From:SeekIC

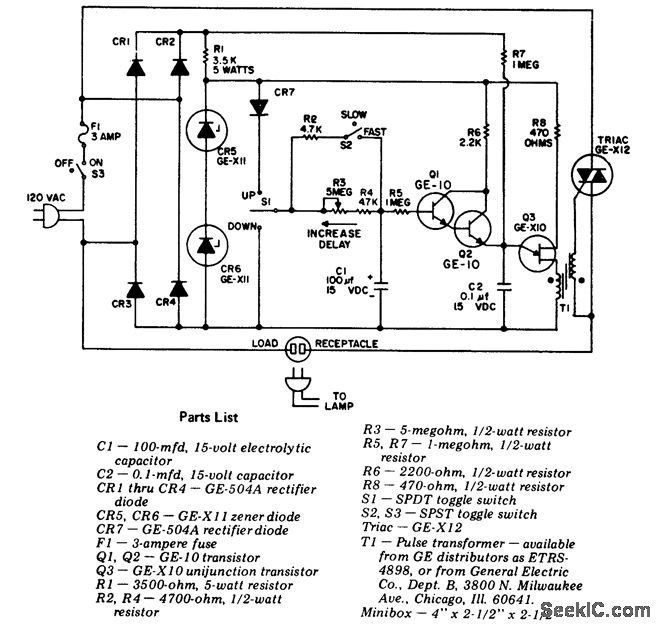

Time-dependent light dimmer. The circuit allows bright lights to slowly fade over a period of 15 to 20 minutes and permits loads up to 500 watts (courtesy General Electric Company).
