Universal DC-DC Convertor

Published:2012/11/26 0:50:00 Author:muriel | Keyword: Universal , DC-DC Convertor | From:SeekIC

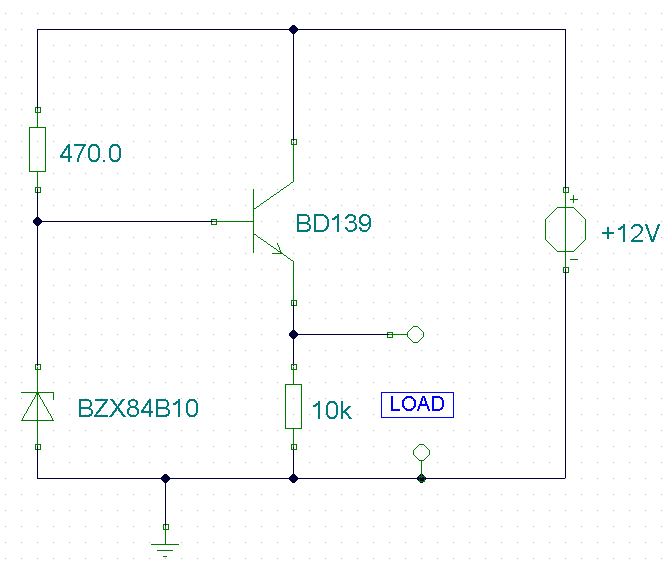

This circuit will generate a smaller DC output voltage from a larger DC input voltage.It is quick and simple to make and by changing the value of the zener diode, the circuit can be universally adapted to provide other output voltages.The circuit and all diagrams represent a DC convertor with 12V battery input and 9Volt DC output.
